Closed $2\times2$ Economy with Intermediate Inputs and Nesting

This model is available in a notebook file here.

Consider the following social accounting matrix (SAM).

We are going to use this matrix to construct a simple CES nesting structure that permits the modeler to specify different elasticities of substitution between different groups of inputs.

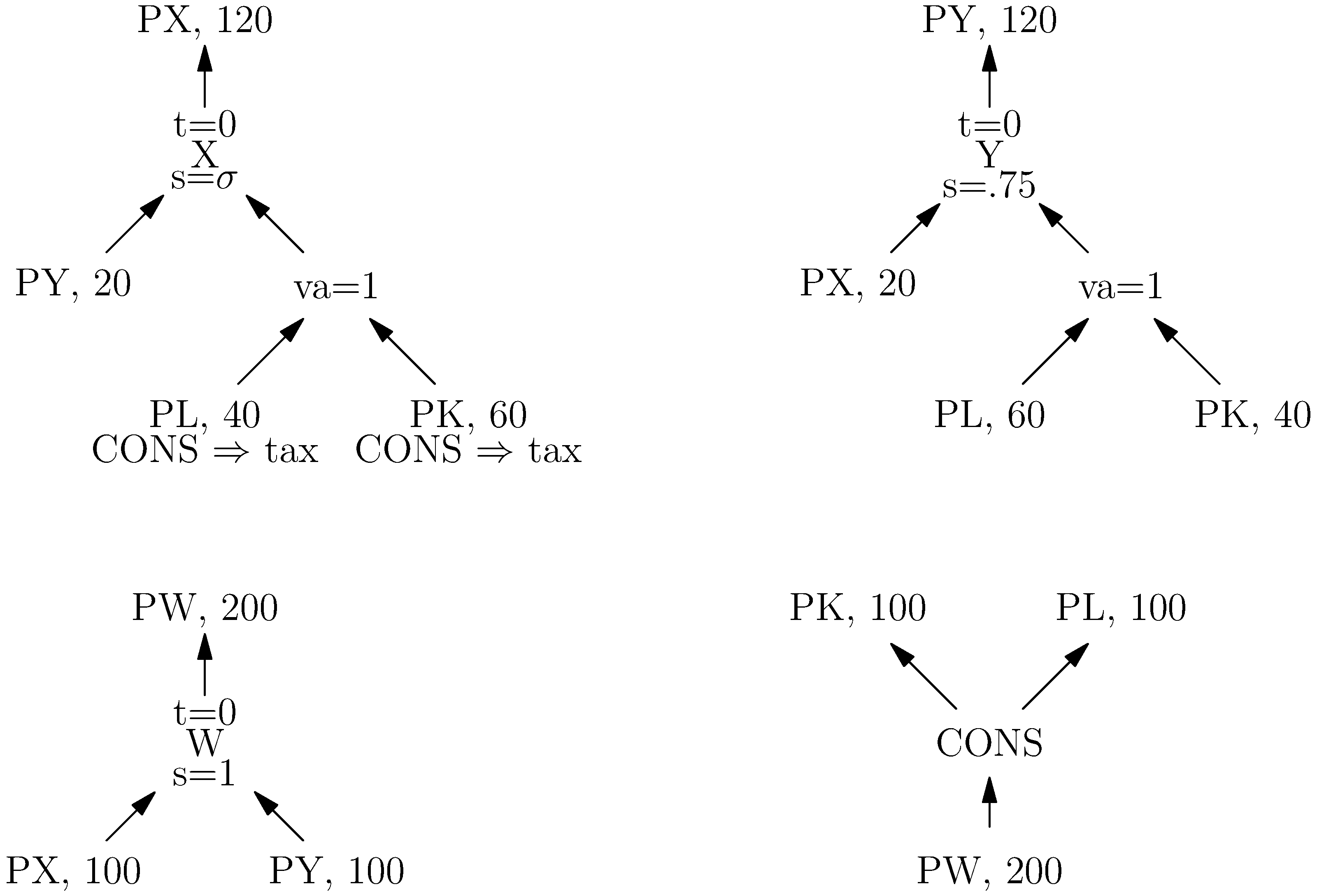

While the SAM contains the data to build the model, it doesn't specify any structure. To do this we use a tree diagram. For this model we will have four trees: X, Y, W, CONS.

These should be self explanatory, but we'll detail the X tree. First, X has an associated elasticity of substitution $s=\sigma$ and elasticity of substitution t=0. There is only one output, PX with quantity 120. PY, PL, and PK are inputs, but we are nesting PL and PK under the shadow sector va, this is also referred to as a nest. The va=1 specifies the elasticity of substitution on the inputs of va. Finally, we are going to impose a tax on PL and PK, taxes require a consumer in this case there is only one, CONS.

The CONS tree is similar, consumers have demands and endowments. In this case, CONS demands 200 units of PW and endows both PL and PK 100 units.

Using this type of diagram trivializes the implementation of a model into MPSGE. The language of MPSGE is directly tied to these trees, as we will see.

Model Initialization

First we import MPSGE and initialize the model.

using MPSGE

M = MPSGEModel()

Defining Variables

This model has:

1. Three sectors X, Y, and W
2. Five commodities PX, PY, PW, PL, and PK
3. One consumer CONS

Let's add these to the model.

@sectors(M, begin
    X
    Y
    W
end)

@commodities(M, begin
    PX
    PY
    PW
    PL
    PK
end)

@consumer(M, CONS)

We use the plural version of both sector and commodity because we have multiple of each. Each of these variables has been added to the local namespace, so we can type X and it will display X. This is useful as we continue to build the model. These can also be accessed directly from the model, M[:X].

Parameters

In this model we will want a two parameters, tax and σ. This will allow us to apply various shocks without recompiling the model.

@parameters(M, begin
    tax, 0
    σ, .5
end)

The parameter block requires that you set initial values for each parameter.

Production

In this model we will have three production blocks, one for each sector. View the full @production documentation.

We'll detail the X production block as it has the most interesting structure. Here is the full production block,

@production(M, X, [s = σ, t = 0, va => s = 1], begin
    @output(PX, 120, t)
    @input( PY, 20,  s)
    @input( PL, 40,  va, taxes = [Tax(CONS,tax)])
    @input( PK, 60,  va, taxes = [Tax(CONS,tax)])
end)

there is a lot going on in this, let's break it down piece by piece. The first few pieces, @production(M, X, are self-explanatory, model and sector.

This brings us to [s = σ, t = 0, va => s = 1] which defines the nesting structure. There are two top level nests s and t with respective elasticities of σ and 0. Compare this to the other nest, va, which sits under s, this is denoted with va => s and the = 1 sets the elasticity to 1. One thing to notice is that σ is a previously defined parameter. In general, any quantity can be either a number or parameter.

Finally, @input and @output. These must be wrapped in the begin .. end syntax. The syntax of building an output is the same as an input, so we'll describe an output. The required information is a commodity, quantity, and nest. We have used Julia macro syntax to suppress parentheses and commas, but you could equivalently defined these as

@output(PX, 120, t)

Outputs have two possible keywords, reference_price and taxes. reference_price is a simple quantity whereas taxes is an array of Tax objects, as illustrated in the PK input.

The remaining production blocks are similar,

@production(M, Y, [t = 0, s = .75, va => s = 1], begin
    @output( PY, 120, t)
    @input(  PX, 20, s)
    @input(  PL, 60, va)
    @input(  PK, 40, va)
end)

@production(M, W, [t = 0, s = 1], begin
    @output( PW, 200, t)
    @input(  PX, 100, s)
    @input(  PY, 100, s)
end)

Demand

Each consumer will have a corresponding demand block. Here is the demand block for CONS

@demand(M, CONS, begin
    @final_demand(PW, 200)
    end,begin
    @endowment(PL, 100)
    @endowment(PK,100)
end)

The first two inputs are the model and the consumer. Then there are two begin .. end blocks, the first is for final demand and the second is endowments. This may get improved in the future to be a single block.

Solving the Model

To solve the model, you call solve! on the model. You can also pass PATH options view keyword arguments. In this case we are testing the benchmark calibration so we set the cumulative iteration limit to 0.

solve!(M; cumulative_iteration_limit = 0)

While the solver output can be useful, it's more useful to see the values and the marginal values. Any non-zero marginal value should be investigated. LINK TO MODEL DEBUGGING INFORMATION HERE.

df_benchmark = generate_report(M)

This will return a Julia dataframe, which you can manipulate using any dataframe technique. If you plan to manipulate this dataframe, it will be useful to use the DataFrames package

using DataFrames.jl

You can also retrieve information using standard JuMP functions, for example

value(X)

will give you the value of X.

We can solve a counterfactual by changing the value of a parameter. In this case we'll also fix PW to 1 to pin a specific solution.

fix(PW,1)
set_value!(tax,.5)

solve!(M)
df = generate_report(M)
